PRODUCTS

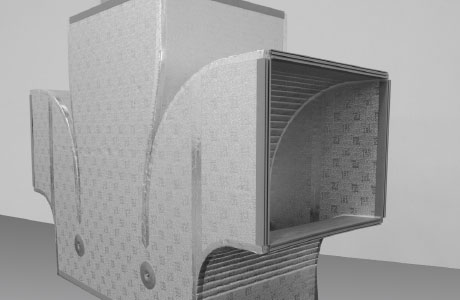

First Duct Panel

product-image

Our Products

FirstDuct provide the best solution for your ducting needs with high quality materials. Our pre insulated ducts (PIR) have an excellent insulation properties, lightweight material, and great durability. PIR Duct (Poly Isocyanurate Rigid Form) is an improvement from PUR Duct (Poly Urethane Rigid Form) with better fire retardancy, higher density and better R value.

ADVANTAGES
    • Excellent Insulation Properties
    • Ignitability index 0
    • Longer life span 20 years
    • Reduce construction time and cost
    • Eco-friendly product (CFC-Free)
    • Energy saving
    • Create thermal comfort
    • Cleanable & Hygienic
    • Noise reduction
    • Spread of flame index 0
    • Heat evolved index 0
    • Lightweight material with built-in PIR Core
rotate-360
FD 101 Embossed Finishing
FD 102 Smooth Finishing

Specifications

Description Value
Panel dimensions (mm) 4000 x 1200 x 20
Density of polyisocyanurate (PIR)1 53 +/- 2kg/m31
Aluminium foil thickness 80 micron
Fire retardant class O
Thermal conductivity 0.020 w/m.k
Friction losses 0.0135
Pressure in duct max 2000 pa
Weight 1.48 kg/m2
Working temperature -60°C to +80°C
Air flow max 12 m/s

FirstDuct test result

Approved by :
Fire Fighting and Disaster Mitigation

Jakarta Office (Number :3402 / -1.784.25)

Density Test : ASTM 3574
Flammability Test : UL-94
ISO 9001 : 2008

Reg. Number : 16 100 1047


ISO 14001 : 2004

Reg. Number : 08 04 H 12027
